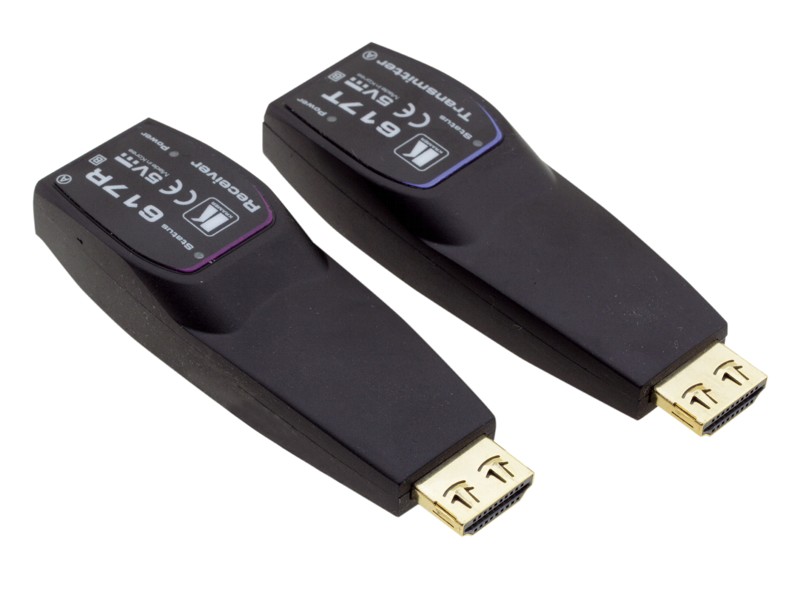

Kramer 617R/T

Popis

Set optický extender pre prenos HDMI 4K signálu po optickom kábli, profesionálny optický prijímač a vysielač pre prenos signálov HDMI 2.0, 200m dosah, 4K UHD 60

VIDEO
Max. Resolution: 4K @60Hz 4:4:4 (4096x2160)
Data Rate: Maximum 6 Gbps per channel
Compliance: Supports HDMI 2.0, HDCP 2.2, EDID and CEC
PORTS
617T (source end): Male HDMI connector
617R (display end): Male HDMI connector
617T (source end): Micro USB (for power supply)
617R (display end): Micro USB (for power supply)
POWER
5V: Via USB source, Via external source, or HDMI PIN #18 (617T only)
Consumption: <2.5W
RECOMMENDED CABLE
Structure: Dual Multi–mode OM3 (50/125um) glass fiber
Optical Connectors: Duplex LC connectors
Max. Fiber Cable Attenuation (?=850nm): 2.5dB/KM
Max. Skew: 0.4ns
Max. Insertion Attenuation: 0.5dB
Total Optical Attenuation: 1dB max @ 656ft (200m) extension
Maximum Length: 656ft (200m)
ENVIRONMENTAL CONDITIONS
Operating Temperature: 0° to +50°C (32° to 122°F)
Storage Temperature: –30° to +70°C (–22° to 158°F)
Operating Humidity: 0 to 85%
STANDARDS COMPLIANCE
CE: EN 55032:2012/AC: 2013 (Class A), EN 61000–3–2:2014, EN 61000–3–3:2013, EN 55024:2010
FCC: CFR 47 part 15 SUBPART B Class B, Section 15.101
Environmental: RoHS (2011/65/ EU)
ACCESSORIES
Included: 2 Micro USB to USB type–A cables, 2 Wall–mount power adaptor
